COLORED GLASS FILTERS

Infrared Transmitting Filters (IR, RM)

Infrared Transmitting Filters absorb most of the visible region and transmit the infrared region.
They are widely used in light sources for purposes such as infrared warning systems and night-vision equipment.

Application: Camera, Medical, Security

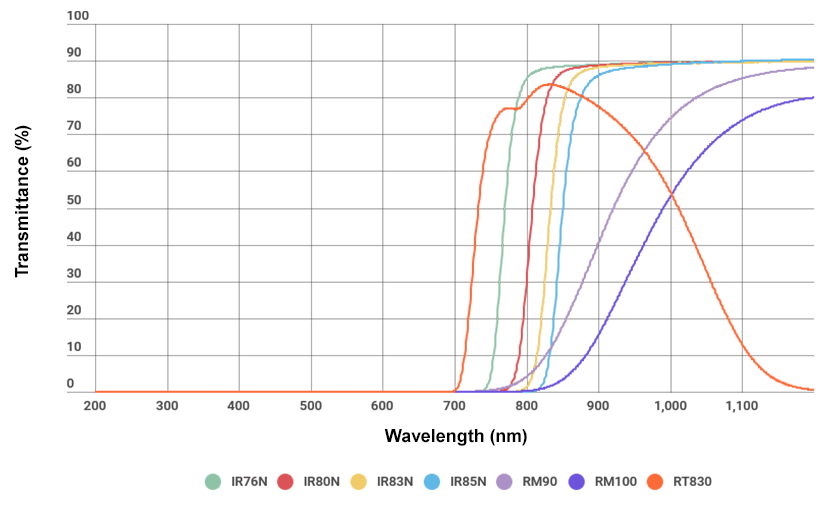

Transmittance

Infrared Transmitting Filter: Data

ItemStandard ValueThicknessRefractive
Index
Chemical
property
Thermal propertiesMechanical
properties
Specific
gravity
λT
(nm)
∆λ
(nm)
TH (%)mm600nmDWDATgTsα
-30/70
α
100/300
HKFAS
pdfIR76N760±10<602.51.5611249554589995001602.84
pdfIR80N800±10<602.51.56313495550871005001602.85
pdfIR83N830±10<602.51.56924500555991095001602.99
pdfIR85N850±10<602.51.57214490535921025001503.02
ItemStandard ValueThicknessRefractive
Index
Chemical
property
Thermal propertiesMechanical
properties
Specific
gravity
λ5
(nm)
λ1200
(nm)
mm600nmDWDATgTsα
-30/70
α
100/300
HKFAD
pdfRM90>770<10502.5*334004901071254501703.15
ItemStandard ValueThicknessRefractive
Index
Chemical
property
Thermal propertiesMechanical
properties
Specific
gravity
λ5
(nm)
λ1200
(nm)
mm600nmDWDATgTsα
-30/70
α
100/300
HKFAd
pdfRM100>85080±52.51.62034450490981154601803.23
ItemStandard ValueThicknessRefractive
Index
Chemical
property
Thermal propertiesMechanical
properties
Specific
gravity
T830
(%)
T700
(%)
T1200
(%)
mm600nmDWDATgTsα
-30/70
α
100/300
HKFAd
pdfRT83082±5<5<12.51.536115456051015101402.75

* The listed data are standard values. As we are always improving our products, the data listed are subject to change without notice.
