With state-of-the-art processing technology by world
standards, maximize added value, appeal and reliability of glass.
We support high quality with high technology.
Development of New Glass Materials
We propose and commercialize optical filters that meet your needs with
a consistent production system from material development, processing to productization.

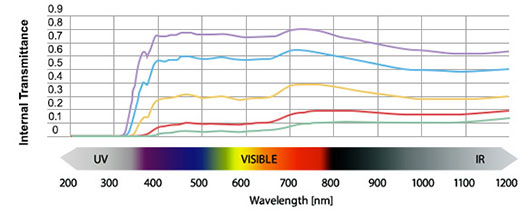

Neutral Density Filters (W-ND)
World standard Neutral density filters (W-ND filters) with top quality and excellent optical performance. W-ND series is designed to match the world standard and different from current line of neutral density glass types in terms of thickness and transmittance.New Material Catalog Download

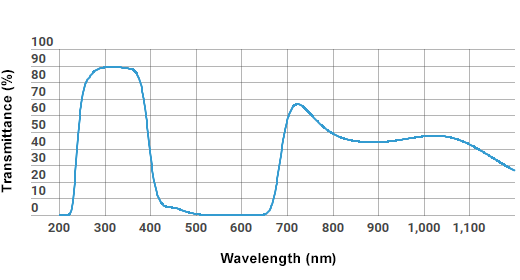

UV Band pass filter UL365S
- UV band pass filter with ultraviolet transmission and visible absorption
- High resistance to solarization
- Heat tempered available
- Maximum available size: 400 (W) X 500 (L) - heat tempered
- Suitable for applications such as ultraviolet detectors, biomedical, theater lights, UV curing

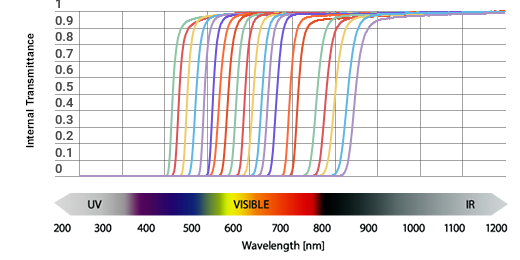

Sharp Cut Filters (W series)
HOYA CORPORATION OPTICS SECTION has developed and released a new line of sharp cut filters with top quality and excellent optical performance. The ″W series″ meets the requirements of the market in all aspects.New Material
Extensive Processing Technology
We have established our own processing consignment network with high quality and high technology both in Japan and overseas.
In addition to rectangles and round shapes, it is possible to provide products that make use
of high technical capabilities such as trapezoidal / cylindrical shape / inside diameter (perforated).

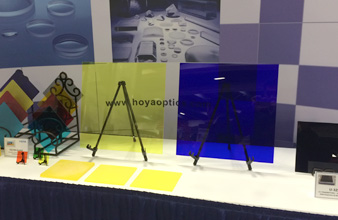

* The two colored glass filters in the center of pictures are
400 mm X 400 mm
Various type of filter size
In order to respond to your request, we provide optical filters in various shapes from small size to large size and from thin to thick. Please contact us for more details on availability which is dependent on the specific conditions required such as dimension, thickness, surface processing accuracy.
Integrated processing network from materials to finished product

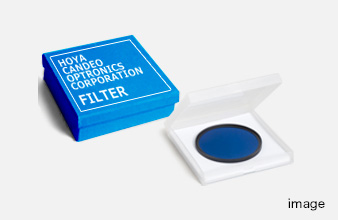

In addition to selling colored glass filters as material and polished product, we have a network of consistent processing through completion which includes mounting in rings and packaging in small boxes. By doing so, we can offer finished products in the form of your request.

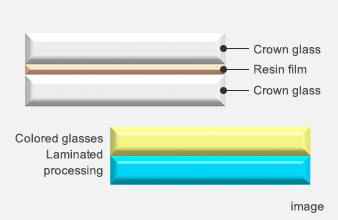

We also handle laminated bonded products of colored glasses with unique characteristics achieved by overlapping the wavelengths of different colored glass filters. We also can provide special filters with characteristics that colored glass filters alone cannot guarantee by laminating a resin film or polarizing film between two substrates of crown glass.
For transmission filters used for high-power light sources, requirements include increasing the glass strength to prevent damage due to sudden temperature changes. We can provide products with high strength reliability against large temperature changes by adding optimum heat strengthening process to various glass materials according to purpose of use. In addition, we can propose chemical tempering (ion exchange) according to your request. For chemical tempering process, glass types are limited. Please contact us for additional details.
Water immersion test at 230°C to 0°C. was passed by visible light region sharp cut filter
Freezing loading test at 200°C to -20°C. was passed by ultraviolet transmitted filter
